Raspberry Pi

2019-04-04

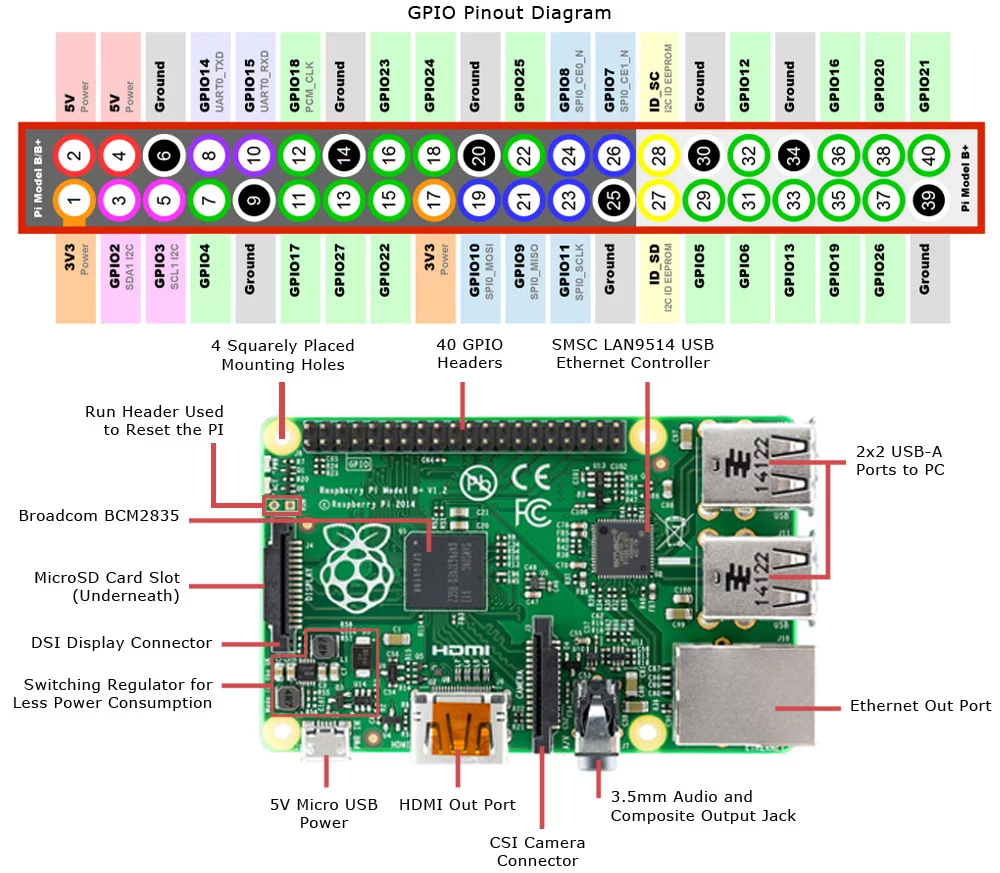

Pinout

rpi3_pinout

Specifications

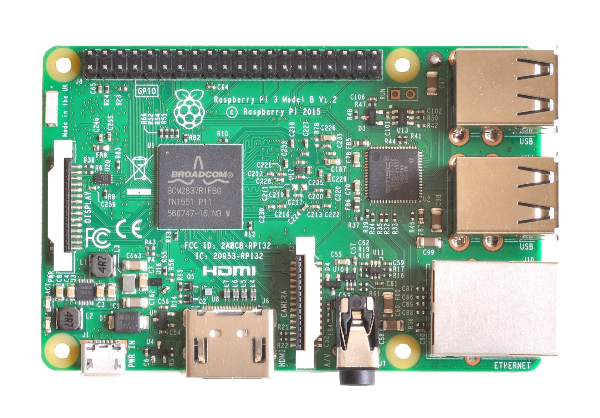

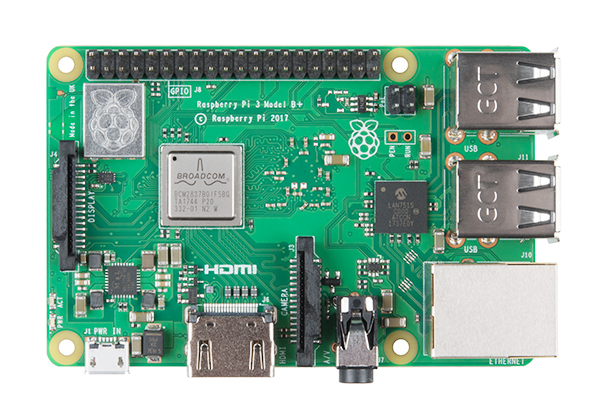

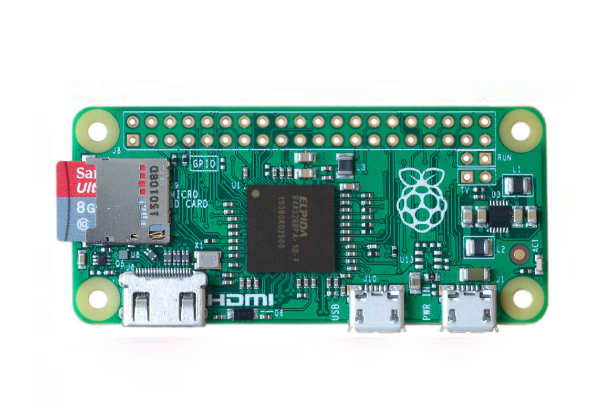

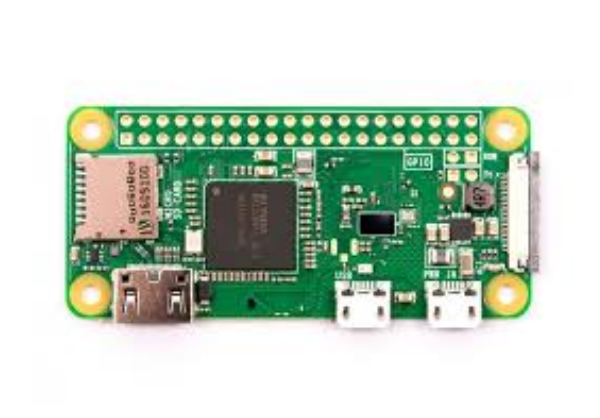

Raspberry Pi 3 B+ Raspberry Pi 3 B Raspberry Pi Zero W Raspberry Pi Zero
CPU ARM Cortex-A53 1.4 GHz, Broadcom BCM2837B0 (64-bit) ARM Cortex-A53 1.2 GHz, Broadcom BCM2837 (Quad Core, 64-bit) 1 GHz, single-core CPU 1 GHz, single-core CPU
Memory 1 GB LPDDR2 SDRAM 1 GB SRAM 512 MB RAM
Ethernet 300 Mbps + PoE 10/100 Mbps - -
Wi-Fi 2.4 GHz/5 GHz (802.11b/g/n/ac) BCM43438, 2.4GHz 802.11 b/g/n -
Bluetooth 4.2, BLE 4.1, BLE 4.1, BLE -
USB 4x Type A USB 2.0 4x Type A USB 2.0 1x Micro USB (OTG)
Audio/Video HDMI (full size), Stereo + Composite (4-pole, 3.5mm) HDMI (full size), Stereo + Composite (4-pole, 3.5mm) HDMI (mini), Composite (headers)
GPIO 40-pin header 40-pin header 40-pin header (HAT compatible) 40-pin header (HAT compatible)
Storage Micro SD Micro SD Micro SD Micro SD
Power Micro USB, 5V @ 2.5A Micro USB, 5V Micro USB, 5V Micro USB, 5V @ 1A
